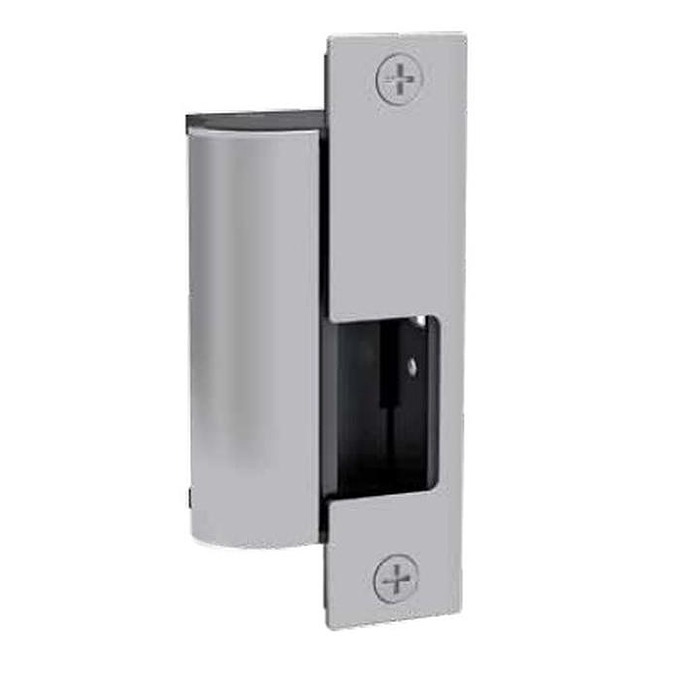

HES 1006

Dual Voltage Electric Strike Suitable For Outdoor Use

Quick Product Details

  • Dual Voltage Electric Strike
  • UL 1034 burglary-resistant listed and suitable for outdoor use
Price: $399.00 /each

SKU: 1006

Choose Options Below

This HES 1006 is an electric strike that provides remote release of a locked door. It is the strongest and most versatile electric strike available. With 24 faceplate options, the HES 1006 can accommodate virtually every type of lockset on the market and is suitable for outdoor use. (The 1006 replaces the obsolete 1003 Series)

  • Stock Item
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $399.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Satin Stainless Steel 630 Satin Stainless Steel 630

Choose Face Plate:

Need Help Deciding? QH chevron down
E Option 630 finish + $39.00 E Option 630 finish +$39.00
H Option 630 finish + $39.00 H Option 630 finish +$39.00
HD Option 630 finish + $39.00 Limited Availability HD Option 630 finish +$39.00
HM Option 630 finish + $39.00 HM Option 630 finish +$39.00
HT Option 630 finish + $39.00 HT Option 630 finish +$39.00
H-2 Option 630 finish + $61.00 H-2 Option 630 finish +$61.00
HTD Option 630 finish + $39.00 HTD Option 630 finish +$39.00
K Option 630 finish + $25.00 K Option 630 finish +$25.00
KD Option 630 finish + $25.00 KD Option 630 finish +$25.00
J Option 630 finish + $25.00 J Option 630 finish +$25.00
J-2 Option 630 finish + $50.00 J-2 Option 630 finish +$50.00
KM Option 630 finish + $25.00 KM Option 630 finish +$25.00
K-2 Option 630 finish + $50.00 K-2 Option 630 finish +$50.00
N Option 630 finish + $39.00 N Option 630 finish +$39.00
ND Option 630 finish + $39.00 ND Option 630 finish +$39.00
NM Option 630 finish + $39.00 NM Option 630 finish +$39.00
N -2 Option 630 finish + $61.00 N -2 Option 630 finish +$61.00
R Option 630 finish + $39.00 R Option 630 finish +$39.00
Z Option 630 finish + $26.00 Z Option 630 finish +$26.00
No Face Plate

Help Me Decide

HTD Option

For: mortise locksets

Compatible with:

  • Sargent (7700 and 8100)
  • Schlage
  • Yale (8700)
1” deadbolt center-lined deadlatch Strike will not release when deadbolt is extended
K Option

For: mortise locksets

Compatible with:

  • Baldwin
  • Marks
  • PDQ
  • Others
  deadlatch positioned above latchbolt
KD Option

For: mortise locksets

Compatible with:

  • Jackson
  • Sargent (770 and 8100)
  • Schlage
  • Yale (8700)
  deadlatch positioned above latchbolt




J Option For: cylindrical locksets maximum 3/4" throw on all locksets with center-lined bolts




ND Option

For: mortise locksets

Compatible with:

  • ?Sargent (7700 and 8100)
  • Schlage
  • Yale (8700)
deadbolt used for night-latch function only without deadlatch
NM Option

For: mortise locksets

Compatible with:

  • Best (45H, 47H, 34H - 37H)
  • Corbin Russwin
  • Falcon
  • Sargent (7800, 8200 and 9200)
deadbolt used for night-latch function only deadlatch positioned below latchbolt
R Option

Compatible with:

  • Adams Rite
  • Others
Hook-bolt up to 1” throw without deadlatch
T Option

For: mortise locksets

Compatible with:

  • Accurate
  • Arrow
  • Baldwin
  • Marks
  • Omnia
  • PDQ
  • Others
normally extended 1” deadbolt




Choose Fail Safe/ Fail Secure:

Fail Secure (Std)
Fail Safe- F

Help Me Decide

  • Fail Secure - (standard) electric strikes require power to be applied to unlock the strike lip. In the case of a power loss, the strike will be locked.
  • Fail Safe, F - electric strikes require power to be applied to lock the strike lip. In the case of a loss of power, the strike will be unlocked. Building codes prohibit the use of fail-safe strikes on labeled openings.

Choose LBM/LBSM:

LBM - Latch Bolt Monitor +$74.00
LBSM - Monitors position of latchbolt and keeper +$86.00
No LBM or LBSM

Help Me Decide



  • LBM - Monitors the position of the latchbolt. It is compatible with J, K, KD, KM, N, ND, NM, Z,  J-2, K-2, and KM-2 options only.
  • LBSM - Monitors the position of the latchbolt and the keeper. Compatible with J, K, KD, KM, N, ND, NM, Z, J-2, K-2, and KM-2 options only.

Overview

Quality:
  • UL 10C fire-rated, 3 hour single door (fail secure only)
  • UL 10C fire-rated, 1-1/2 hour double door (fail secure only)
  • CAN4-S104(ULC-S104) fire door conformant
  • ANSI A250.13-2003 windstorm listed
  • UL 1034 burglary-resistant listed and suitable for outdoor use
  • UL 294 listed
  • ANSI/BHMA A156.31, Grade 1
  • NFPA-252 fire door conformant
  • ASTM-E152 fire door conformant
Florida Building Code approved
  • 5 year limited warranty​

Special Orders Available:
  • More unlisted finishes available.
Contact us directly to place your special orders.

Available Options: Choose Options Above

  • Finish:

  • Face Plate: info icon

    • E Option 630 finish
    • H Option 630 finish
    • HD Option 630 finish
    • HM Option 630 finish
    • HT Option 630 finish
    • H-2 Option 630 finish
    • HTD Option 630 finish
    • K Option 630 finish
    • KD Option 630 finish
    • J Option 630 finish
    • J-2 Option 630 finish
    • KM Option 630 finish
    • K-2 Option 630 finish
    • N Option 630 finish
    • ND Option 630 finish
    • NM Option 630 finish
    • N -2 Option 630 finish
    • R Option 630 finish
    • Z Option 630 finish
    • No Face Plate
  • Fail Safe/ Fail Secure: info icon

    • Fail Secure (Std)
    • Fail Safe- F
  • LBM/LBSM: info icon

    • LBM - Latch Bolt Monitor
    • LBSM - Monitors position of latchbolt and keeper
    • No LBM or LBSM

Product at A Glance

  • Features a dual interlocking plunger design and heavy-duty, all stainless steel construction.
  • Plug-in connector
  • Internally mounted solenoid
  • Tamper resistant
  • Full keeper shims to allow for  horizontal adjustment
  • Trim enhancer
Style Dual Voltage Electric Strike
Application Steel, aluminum and wood frames
Handing Non-handed
Voltage Dual voltage 12 or 24VDC continuous duty
Electricity Continuous duty - .45 Amps @ 12 VDC, .25 Amps @ 24VDC
Static Strength 3070 lbs. (fail secure)
Dynamic Strength 350 lbs. (fail secure)

More Info


Hes 1006 electric strike is the most versatile strike in today’s market. It is available with twenty-seven faceplate options which makes it usable in nearly all applications with virtually all locksets and conditions. It is the ideal choice to provide for reliable remote latching of a door wherever necessary. Select the appropriate faceplate and your satisfaction is guaranteed.

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Videos

HES 1006 Installation thumbnail

HES 1006 Installation
