HES 9400

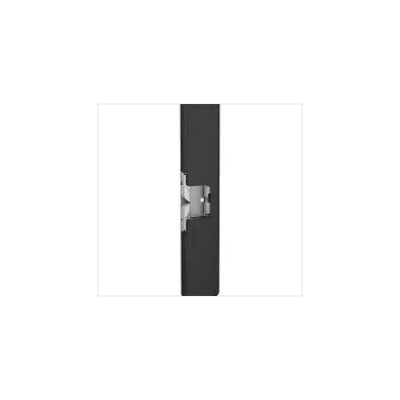

Genesis-Surface Mounted Slim-Line Electric Strike for Rim Exit Devices Suitable For Outdoor Use

Quick Product Details

  • Electric Strike
  • Surface Mounted
  • For steel, aluminum and wood frames
  • Used With: Rim Exit Devices
Price: $362.00 /each

SKU: 9400

Choose Options Below

This HES 9400 Genesis Slim Line electric strike is completely surface mounted with a unique 1/2" slim-line form. This strike is non-handed and suitable for steel, aluminum and wood door frames with rim exit devices. The 9400 electric strike allows for horizontal adjustment.

  • Stock Item
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $362.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Satin Stainless Steel (US32D) Satin Stainless Steel (US32D)
Oil Rubbed Bronze (US10B) + $84.00 Oil Rubbed Bronze (US10B) +$84.00

Overview


Quality:
  • Slim-Line
  • ANSI/BHMA A156.31, Grade 1
  • UL 1034, burglary-resistant listed
  • UL rated - suitable for outdoor use
  • Endurance rating 500,000 cycles
  • 5 year limited warranty

Available Options: Choose Options Above

Product at A Glance

  • Stainless steel construction
  • Field selectable fail safe/fail secure
  • Horizontal adjustment
  • Internally mounted solenoid
Style Electric Strike
Used With Rim exit devices
Application Steel, aluminum and wood frames
Mounting Completely surface mounted with unique 1/2" slim-line form
Handing Non-handed
Voltage 12 or 24 VDC - field selectable
Electricity .45 Amps @ 12 VDC, .25 Amps @ 24VDC
Static Strength 1,500 lbs.
Latchbolt Accommodates up to 1/2" pullman latch
Dynamic Strength 70 ft./lbs.

More Info


This 9400  slim-line electric strike that will lend a sleek look to any application.It is designefd to work well with rim exit devices with a 1/2” pullman latch. The mechanism is all encased in a  1/2” thick stainless steel housing which enables installation without cutting the frame. An 1/8” spacer plate is supplied to accommodate various door gaps.
