Norton 5845xNPB

5845xNPB

Price: $2,883.00 /each

SKU: 5845xNPB

Choose Options Below

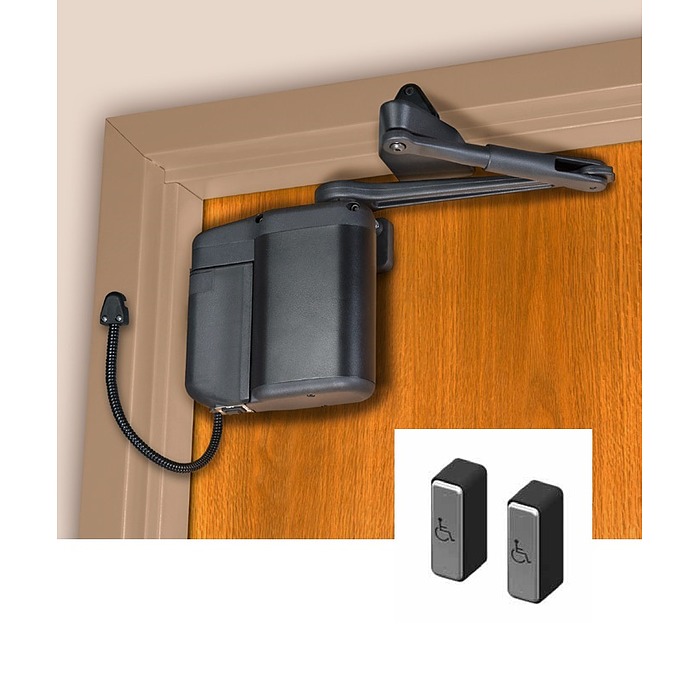

The Norton ADAEZ PRO Complete 5845xNBP heavy-duty low energy compact door operator kit for push or pull side mounting. Use either as wire free Regenerative Drive Operation for high traffic manual opening applications that occasionally require automatic operation OR hardwired for high traffic applications that require continuous duty. With two RF wireless narrow stile push buttons for automatic operation.

  • Stock Item
  • Order in the next 33 hours 46 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $2,883.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose ADA Wireless Interface Module:

Wireless Interface Module ADA1028W + $375.00 Wireless Interface Module ADA1028W +$375.00
Not Needed Not Needed

Help Me Decide

  • Required for use with wireless push buttons.
  • Wireless Interface Module For Adaez for Low Energy Operator
  • The Wireless Interface Module ADA1028W allows the ADAEZ door operator to interface to ADAEZ wired or wireless push buttons, wireless remote, an electric lock, fire panel, access control, and an outside pushbutton disable contact.

Overview

  • Kit includes ADAEZ Pro operator, 2 narrow stile wireless Push Buttons, Hardwire Kit and push and pull side mounting hardware.
  • Regenerative Power System eliminates need to wire power to opening.
  • Regenerative Power System charges an onboard battery pack that eliminates the need to run electrical wire to the unit. When used in automatic mode 25% of the time or less, the 5800 Series ADAEZ PRO will self-generate enough power to charge the battery pack for up to 12 years.
  • This operator includes a 24 VDC hardwired transformer kit that allows the non-handed unit to plug directly into an outlet for high traffic applications that require continuous duty automatic operation.
  • The transformer kit Includes 24 VDC transformer, armored door cord with end links and 50 feet of low voltage connection cable.
  • Includes 2 narrow stile wireless weatherized RF push buttons included for simple installation.
  • Pushbuttons-1-3/4" x 4-1/2" jamb mounted.
  • Featuring Push-and-Go and Power Close when used with included hardwire kit.
  • Push-and-Go - selectable on or off.
  • Power Close ensures consistent door latching when used with included hardwire kit.
  • 95° maximum opening.
  • Controls doors up to 48” wide and 250 lbs in weight.
  • Meets requirements for Americans with Disabilities Act (ADA).
  • Built-in On/Off switch.

Available Options: Choose Options Above

  • ADA Wireless Interface Module: info icon

    • Wireless Interface Module ADA1028W
    • Not Needed

More Info

  • 693T, black cover standard,operator frame/arm is only available in black finish.
  • Built-in battery back-up.
  • Grade 1 - heavy-duty, commercial design.
  • Shock absorbing arm.
  • ANSI/BHMA A156.19 certified.
  • ETL tested to UL/cUL standard for automatic doors on fire & smoke barrier doors.
  • UL10c 90-minute positive pressure fire rating.
  • Integral LED battery charge indicator.
  • Dynamic braking for high wind applications.
  • Electronic backcheck for abusive environments.
