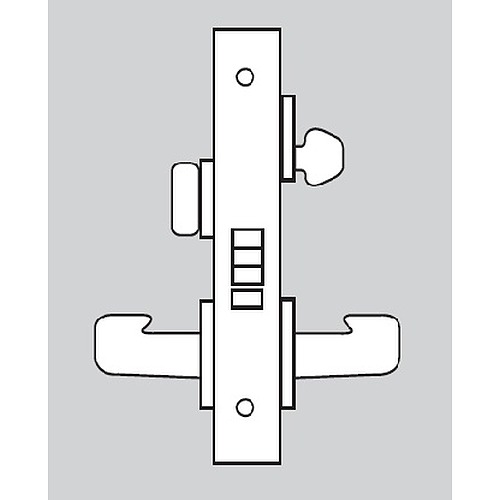

Sargent 8205LNJ-26D

Office or Entry Function Complete Mortise Lock with Lever and Rose.

Price: $669.00 /each

SKU: 8205LNJ-26D

Choose Options Below

Complete mortise locks contain everything needed for new or replacement installation. The Sargent 8205 complete Office or Enrty function mortise lock, Key outside retracts latchbolt when outside lever is locked. Thumbturn inside locks & unlocks outside lever. Lever inside always retracts latchbolt, lever outside remains locked. Mortise locks provide maximum security, performance and durability. Ideally suited for Hospitals, Schools, Universities, Office Buildings and Government Facilities.

  • Stock Item
  • Order in the next 2 hours 47 minutes to ship TODAY
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $669.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Cylinder:

Need Help Deciding? QH chevron down
Standard 1-1/8" Mortise Cylinder with LA Keyway Keyed Different
No Cylinder Needed (LC) +$69.00
60-Prepped for Removable Core, core not included
70- Prepped for Small Format Interchangeable Core, core not included

Help Me Decide

Standard 1-1/8” mortise cylinder with LA keyway, keyed different

Standard Sargent mortise cylinder

60-repped for Sargent full size removable core (core not included)

  • Easily rekeyed without disassembling entire lock
  • Interchangeable with Sargent mortise locks, exit devices, cylindrical locks , padlocks and auxiliary locks

LC (less cylinder)

Cylinder not included

70-Prepped for Small Format Interchangeable Core(core not included)





Overview

  • LN rose wth J style lever.
  • Satin chrome finish.
  • Includes 1-1/8" mortise cylinder.
  • Complies with ADA- American Disability Act.
  • Backset- 2-3⁄4".
  • Handing - field reversible-shipped RH standard.
  • For doors 1-3⁄4" thick.
  • Body is 4-3/32" deep x 5-31/32" high.

Available Options: Choose Options Above

  • Cylinder: info icon

    • Standard 1-1/8" Mortise Cylinder with LA Keyway Keyed Different
    • No Cylinder Needed (LC)
    • 60-Prepped for Removable Core, core not included
    • 70- Prepped for Small Format Interchangeable Core, core not included

More Info

  • ANSI F04, 05 Entry or Ofice 8205
  • Key outside retracts latchbolt when outside lever is locked.
  • Lever inside retracts latchbolt only, outside Lever remains locked.
  • Lever outside is locked/unlocked by thumb turn inside or by key outside.
  • Certified to ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1 with all standard trims.
  • Exceeds cycle testing requirements by 14 times the ANSI/BHMA A156.13 Grade 1 standard.
  • Meets positive pressure requirements UL 10C and UBC 7-2.
  • UL and UL Listed safety standards for A label (3 hour fire door).
  • 4-1/2" minimum stile.
  • Strike-ANSI Standard A115.1; 4-7⁄8", 1-1/4" curved lip, non-handed
  • Outside front plate-8" x 1-1⁄4".
  • Latchbolt - Stainless steel 3⁄4" projection one-piece, anti-friction reversible.
