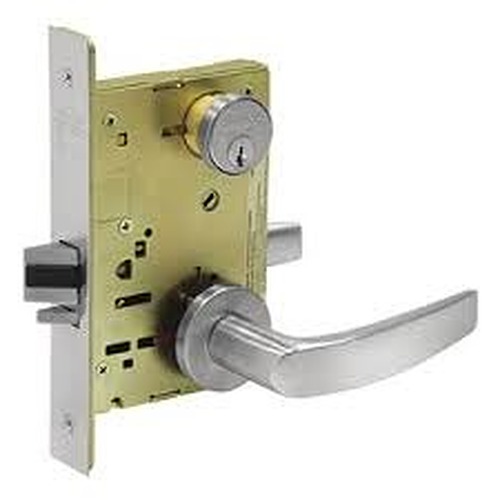

Sargent 8238LN

Classroom Security Intruder Latchbolt Function Complete Mortise Lock with Lever and Rose

Quick Product Details

  • Complete Mortise Lock
  • Classroom Security Intruder Latchbolt Function
Price: $846.00 /each

SKU: 8238LN

Choose Options Below

This Sargent 8238LN mortise lock, is a 8200 series complete lock that operates with the classroom security intruder latchbolt function. This lock series is known to be the strongest lock on the block, providing you with maximum security, durability and performance. Greatly exceeds ANSI/ BHMA Grade 1 standards for cycle testing requirements.

  • Stock Item
  • Order in the next 4 hours 22 minutes to ship TODAY
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $846.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Lever:

B lever with LN Rose B lever with LN Rose
L lever with LN Rose L lever with LN Rose
P Lever with LN Rose P Lever with LN Rose

Help Me Decide

  • Lever with LN style rose. Rose has a 2" diameter

Choose Finish:

US3 (Polished Brass) + $13.00 US3 (Polished Brass) +$13.00
US10B (Oil Rubbed Bronze) + $13.00 US10B (Oil Rubbed Bronze) +$13.00
US26 (Polished Chrome) + $13.00 US26 (Polished Chrome) +$13.00
US26D (Satin Chrome) US26D (Satin Chrome)

Choose Cylinder:

Need Help Deciding? QH chevron down
Standard 1-1/8" Mortise Cylinder with LA Keyway Keyed Different
No Cylinder Needed (LC) +$69.00
60-Prepped for Removable Core, core not included
70- Prepped for Small Format Interchangeable Core, core not included

Help Me Decide

Standard 1-1/8” mortise cylinder with LA keyway, keyed different

Standard Sargent mortise cylinder

60-repped for Sargent full size removable core (core not included)

  • Easily rekeyed without disassembling entire lock
  • Interchangeable with Sargent mortise locks, exit devices, cylindrical locks , padlocks and auxiliary locks

LC (less cylinder)

Cylinder not included

70-Prepped for Small Format Interchangeable Core(core not included)

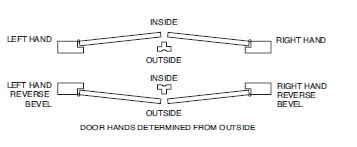

Choose Handing:

Need Help Deciding? QH chevron down
LH Left Hand
RH Right Hand
LHR Left Hand Reverse
RHR Right Hand Reverse

Help Me Decide

Overview



Suited for:
  • Commercial heavy duty applications

Quality and Safety:
  • Exceeds the ANSI/BHMA Grade 1 standards for cycle testing requirements by 14 times.
  • ANSI/BHMA 156.13 series 1000 Operational Grade 1 and Security Grade 1 certified with all standard trims.
  • UL and UL listed to Canadian safety regulations; listed for use on 3-hour doors
  • Positive Pressure - meets UL 10C and UBC 7-2
  • Meets ADA requirements for barrier free accessibility
  • 10 year limited warranty
  • Auxiliary Deadlatch

Convenience:
  • Simple operation - only 30 degrees of lever rotation necessary to retract latch
  • Installation time greatly reduced due to pre-assembled components
  • Can be easily re-handed without disassembling components or removing case

Available Options: Choose Options Above

  • Lever: info icon

    • B lever with LN Rose
    • L lever with LN Rose
    • P Lever with LN Rose
  • Finish:

  • Cylinder: info icon

    • Standard 1-1/8" Mortise Cylinder with LA Keyway Keyed Different
    • No Cylinder Needed (LC)
    • 60-Prepped for Removable Core, core not included
    • 70- Prepped for Small Format Interchangeable Core, core not included
  • Handing: info icon

    • LH Left Hand
    • RH Right Hand
    • LHR Left Hand Reverse
    • RHR Right Hand Reverse

Product at A Glance

Style Mortise lock
Function Classroom Security Intruder Latchbolt Function:
- Key from either side locks/unlocks the outside lever and retracts the latch bolt
- Outside lever retracts the latch bolt, unless it is locked by key
- Inside lever is always free
- ANSI F32
Design - Rose - LN style with 2" diameter
- Lever - select above
Handing Handed - field reversible
Strike 4-7/8" curved-lip strike with a (standard) curved lip of 1-1/4" - non-handed (ANSI A-115.1)
Latch - 3/4" projection
- Stainless steel
- One piece
- Anti-friction
- Reversible
Door Thickness 1-3/4"
Stile 4-1/2" minimum
Backset 2-3/4" standard
Outside Front plate 8" X 1-1/4"
Body 4-3/32" deep X 5-31/32" high

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Videos

SARGENT 8200 Mortise Installation thumbnail

SARGENT 8200 Mortise Installation

Scroll for More Product Information
