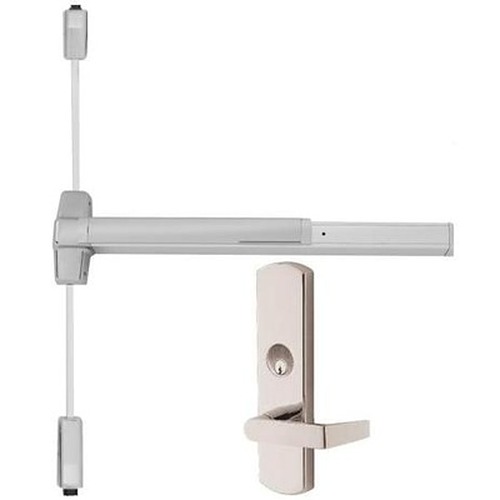

Von Duprin 9927L-NL

Surface Mounted Vertical Rod Device with Night Latch Lever Trim

Quick Product Details

Vertical Rod Exit Device
With Night Latch Lever Trim
Surface Mounted
Heavy Duty

Price: $2,136.00 /each

SKU: 9927L-NL

Choose Options Below

This Von Duprin 9927L-NL is a handed, surface mounted, vertical rod exit device and lever trim. It is a heavy duty, high quality product that is backed by a limited three-year Von Duprin warranty. It is available with cylinder dogging to enable a door to remain unlocked when necessary.

Stock Item
FREE Shipping
No Hassle Returns
×
Enter ZIP Code to see when you will get this item

Have a question about this product?

or for better pricing

Price: $2,136.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Rail Size:

3 FT

4 FT +$17.00

Help Me Decide

3’ rail for 28” to 36”’ door width
4’ rail for 34” to 48” door width

Choose Handing:

Left Hand Reverse - LHR

Right Hand Reverse - RHR

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

The outside of an exterior door is the street or entrance side.
The outside of a room door is the hall side.
The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
The outside of a closet door is the room or hall side.

Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your right side.

Choose Finish:

US28 (628) Anodized Aluminum

313 Duranodic Dark Bronze +$160.00

US26D (626) Satin Chrome +$208.00

Choose EL (Electric Latch Retraction):

3FT EL- Electric Latch Retraction (050070) +$1,026.00

4FT EL- Electric Latch Retraction (050078) +$1,026.00

No EL (Electric Latch Retraction)

Help Me Decide

The EL feature allows for the remote unlatching of exit devices. A control station operator can flip a switch to retract the latch bolt and immediately change an exit door to push-pull operation.
EL devices are also useful with automatic door operators, and may be applied to fire-rated applications when under the control of an automatic fire alarm system.
The EL option does not include the power transfer from door to frame, the power supply, or the control operator. Refer to EPT-2 power transfer and the PS914-2RS power supply.

Choose Cylinder Dogging:

No Cylinder Dogging

Cylinder Dogging, less cylinder (050115) +$91.00

Help Me Decide

Dogging an exit device will put the device in the passage mode. This feature lets an override of the exit device or crash bar for the door to remain unlocked - functioning as regular locking doors. Dogging features are very useful when it is not convenient for a specific door locked from the outside to stay locked.
Cylinder dogging on panic exit devices will replace the standard hex key dogging.
Unit requires a standard 1-1/4" mortise cylinder with a straight cam, not included.
Not available for Fire Rated devices.

Choose Cylinder Rim:

Recommended Rim Cylinder Schlage C Keyway Satin Chrome (QH200) +$17.00

No Rim Cylinder Needed

Help Me Decide

Rim cylinder includes 2 keys.

Overview

Quality:

Meets ANSI 156.3-2001 Grade 1 standards
UL listed for fire exit hardware
3 year Limited warranty

Available Options: Choose Options Above

Rail Size:
Rail Size
3’ rail for 28” to 36”’ door width

4’ rail for 34” to 48” door width
- 3 FT
- 4 FT
Handing:
Handing
Face the outside of the door to determine the hand. Here are some rules to follow:

The outside of an exterior door is the street or entrance side.

The outside of a room door is the hall side.

The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.

The outside of a closet door is the room or hall side.

Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your right side.
- Left Hand Reverse - LHR
- Right Hand Reverse - RHR
Finish:
EL (Electric Latch Retraction):
EL (Electric Latch Retraction)
The EL feature allows for the remote unlatching of exit devices. A control station operator can flip a switch to retract the latch bolt and immediately change an exit door to push-pull operation.

EL devices are also useful with automatic door operators, and may be applied to fire-rated applications when under the control of an automatic fire alarm system.

The EL option does not include the power transfer from door to frame, the power supply, or the control operator. Refer to EPT-2 power transfer and the PS914-2RS power supply.
- 3FT EL- Electric Latch Retraction (050070)
- 4FT EL- Electric Latch Retraction (050078)
- No EL (Electric Latch Retraction)
Cylinder Dogging:
Cylinder Dogging
Dogging an exit device will put the device in the passage mode. This feature lets an override of the exit device or crash bar for the door to remain unlocked - functioning as regular locking doors. Dogging features are very useful when it is not convenient for a specific door locked from the outside to stay locked.

Cylinder dogging on panic exit devices will replace the standard hex key dogging.

Unit requires a standard 1-1/4" mortise cylinder with a straight cam, not included.

Not available for Fire Rated devices.
- No Cylinder Dogging
- Cylinder Dogging, less cylinder (050115)
Cylinder Rim:
Cylinder Rim
Rim cylinder includes 2 keys.
- Rim Cylinder Schlage C Keyway Satin Chrome (QH200)
- No Rim Cylinder Needed

Product at A Glance

Covers stock hollow metal doors with 86 or 161 cutouts
Mortise cylinder is not included

Style	Vertical Rod exit device
Door Undercut	1/4"
Grade	Heavy duty
Mounting	Surface mounted
Trim	Lever Trim: -Key retracts latch bolt. Lever is always locked
Door Thickness	1-3/4" and 2-1/4" with standard centerlines
Door Height	7' (standard)
Dogging Feature	Hex key dogging standard on non fire-rated devices
Strike	- Top: 299 - dull black finish - Bottom: 248L4 & 304L - unfinished
Latch Bolt	Deadlocking, anti-friction top and bottom bolt
Throw	5/8"
Top Rod Length	34-15/16"
Bottom Rod Length	31-1/4"
Projection	- Pushbar neutral: 3-13/16" - Pushbar depressed: 3-1/16"
Measurement from Finished Floor to Centerline of Device	39-5/8"
Center Case Dimensions	8" x 2-3/4" x 2-3/8"
Top and Bottom Latch Case	4-1/2" x 2-1/8" x 1-1/2"
