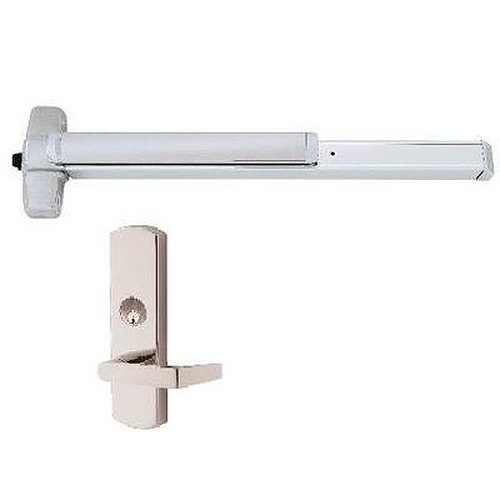

Von Duprin 99L-NL

Rim Exit Device with Night Latch Lever Trim

Quick Product Details

  • Rim Exit Device
  • With Night Latch Lever Trim
  • Heavy Duty

or for better pricing

Price: $1,616.00 /each

SKU: 99L-NL

Choose Options Below

This Von Duprin 99L-NL is a terrific exit device that meets ANSI 156.3-20001 Grade 1 standards and is UL listed for fire exit hardware. It is a handed product available for right hand reverse and left hand reverse doors. Two rail sizes are available to suit the needs of your application.

  • Stock Item
  • Order in the next 7 hours 56 minutes to ship TODAY
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

or for better pricing
Price: $1,616.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Rail Size:

3 FT
4 FT +$17.00

Help Me Decide

  • 3’ rail for 28” to 36”’ door width
  • 4’ rail for 34” to 48” door width

Choose Handing:

Left Hand Reverse - LHR
Right Hand Reverse - RHR

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.

​Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your right side.

Choose Finish:

US28 Anodized Aluminum US28 Anodized Aluminum
US26D Satin Chrome + $130.00 US26D Satin Chrome +$130.00

Choose Cylinder Rim:

Rim Cylinder Schlage C Keyway Satin Chrome (QH200) + $17.00 Recommended Rim Cylinder Schlage C Keyway Satin Chrome (QH200) +$17.00
No Rim Cylinder Needed

Help Me Decide

  • Rim cylinder includes 2 keys.

Choose EL (Electric Latch Retraction):

3FT EL- Electric Latch Retraction (050070) +$1,026.00
4FT EL- Electric Latch Retraction (050078) +$1,026.00
No EL (Electric Latch Retraction)

Help Me Decide

  • The EL feature allows for the remote unlatching of exit devices. A control station operator can flip a switch to retract the latch bolt and immediately change an exit door to push-pull operation.
  • EL devices are also useful with automatic door operators, and may be applied to fire-rated applications when under the control of an automatic fire alarm system.
  • The EL option does not include the power transfer from door to frame, the power supply, or the control operator. Refer to EPT-2 power transfer and the PS914-2RS power supply.

Choose Fire Rated:

UL Fire Rated Exit Device +$190.00
Non Fire Rated

Help Me Decide

UL listed for fire exit hardware.

Overview


Quality:
  • Meets ANSI 156.3-2001 Grade 1 standards
  • UL listed for fire exit hardware
  • 3 year Limited warranty

Special Orders Available:
  • More unlisted finishes available
  • RX, LX or SS switches available
Contact us directly to place your special orders.


Available Options: Choose Options Above

  • Rail Size: info icon

    • 3 FT
    • 4 FT
  • Handing: info icon

    • Left Hand Reverse - LHR
    • Right Hand Reverse - RHR
  • Finish:

  • Cylinder Rim: info icon

    • Rim Cylinder Schlage C Keyway Satin Chrome (QH200)
    • No Rim Cylinder Needed
  • EL (Electric Latch Retraction): info icon

    • 3FT EL- Electric Latch Retraction (050070)
    • 4FT EL- Electric Latch Retraction (050078)
    • No EL (Electric Latch Retraction)
  • Fire Rated: info icon

    • UL Fire Rated Exit Device
    • Non Fire Rated

Product at A Glance

  • For all types of single and double doors with mullion.
  • Quiet operation.
  • Covers stock hollow metal doors with 86 or 161 cutouts on single doors.
  • Rim cylinder required for night latch function, not included.
Style Rim exit device
Grade Heavy duty
Trim Night latch lever trim - 996L-NL Key retracts latch bolt. Lever Always Locked
Handing Handed
Dogging Feature Hex key dogging standard
Center Case Dimensions 8" X 2-3/4" X 2-3/8"
Mechanism Case Dimensions 2-1/4" X 2-1/4"
Strike 299 (dull black)
Latch Bolt Deadlocking - 3/4" throw
Projection - Pushbar neutral: 3-13/16"
- Pushbar depressed: 3-1/16"
Measurement from Finished Floor to Centerline of Device - W/o mullion: 39-13/16"
- With mullion: 39-11/16"
